CIFA Concrete Batching Plants: Sino-Italian Engineering Fusion & Sourcing Evaluation
Executive Summary & Sino-Italian Market Position
CIFA S.p.A. (headquartered in Senago, Milan, Italy, established in 1928) is a global benchmark in concrete technology. Following its strategic acquisition by Zoomlion Heavy Industry in 2008, the company realized a unique industrial synergy. It blended premium Italian design, electrical digitalization, and ergonomics with China's rapid, massive manufacturing supply chains.
While famous for its carbon-fiber boom truck pumps (Carbotech series), CIFA’s concrete batching plant portfolio has undergone significant engineering standardization—most notably marked by the launch of their premium FiveTech® Series (Diamond, Sapphire, and Zircon modular lines) alongside their heavy-duty legacy CIFAMIX stationary plants.
This independent engineering review details CIFA's proprietary helicoidal mixing kinematics, modular maritime transport parameters, Vista automation monitoring boundaries, and lifecycle capital expenditure (CAPEX) realities for B2B procurement managers.
Mechanical Architecture & Helicoidal Mixing Kinematics
To evaluate the long-term operational viability of a CIFA batching plant, engineers must analyze their specialized horizontal compulsory mixers and the shipping configuration optimizations designed for trans-oceanic deployment.
1. Mixing Technology: The DNA Helicoidal Twin-Shaft Mixer
CIFA standardizes its high-performance wet-mix stationary configurations on their proprietary DNA Series helicoidal twin-shaft mixers.
- The Helicoidal Blade Vector: Unlike standard straight-paddle twin-shaft designs that impact aggregates bluntly, CIFA’s DNA mixers feature a continuous helicoidal spiral blade configuration. This shape forces a continuous, multi-directional horizontal wrapping motion throughout the chamber.
- Mechanical Stress Reduction: The helicoidal path minimizes peak shock vibrations by spreading material resistance evenly across the shaft cycle. This action reduces transmission gear wear, optimizes cycle speed, and distributes micro-silica and admixtures uniformly in under 30 seconds of active mixing.
- Armoring and Liners: Wear zones are outfitted with high-density castings. These components maintain a hardness threshold matching 600 HBW, extending single-set liner lifetimes past 120,000 batches under harsh aggregate friction.
2. The FiveTech® Precious-Stone Modular Architecture
The core value proposition of CIFA's modern FiveTech lines lies in their modular containerization.
- Diamond & Sapphire Series: Engineered specifically to match standard maritime cargo shapes, these plants pack down entirely into standard 40ft Open Top/HQ containers. All internal air lines, water plumbing, and electrical conduits are factory pre-installed inside the modules. This configuration strips out massive on-site assembly overhead and drops field crane layout deployment down to a 72-hour commissioning window.
Process Digitalization & CIFA Vista Automation Limits

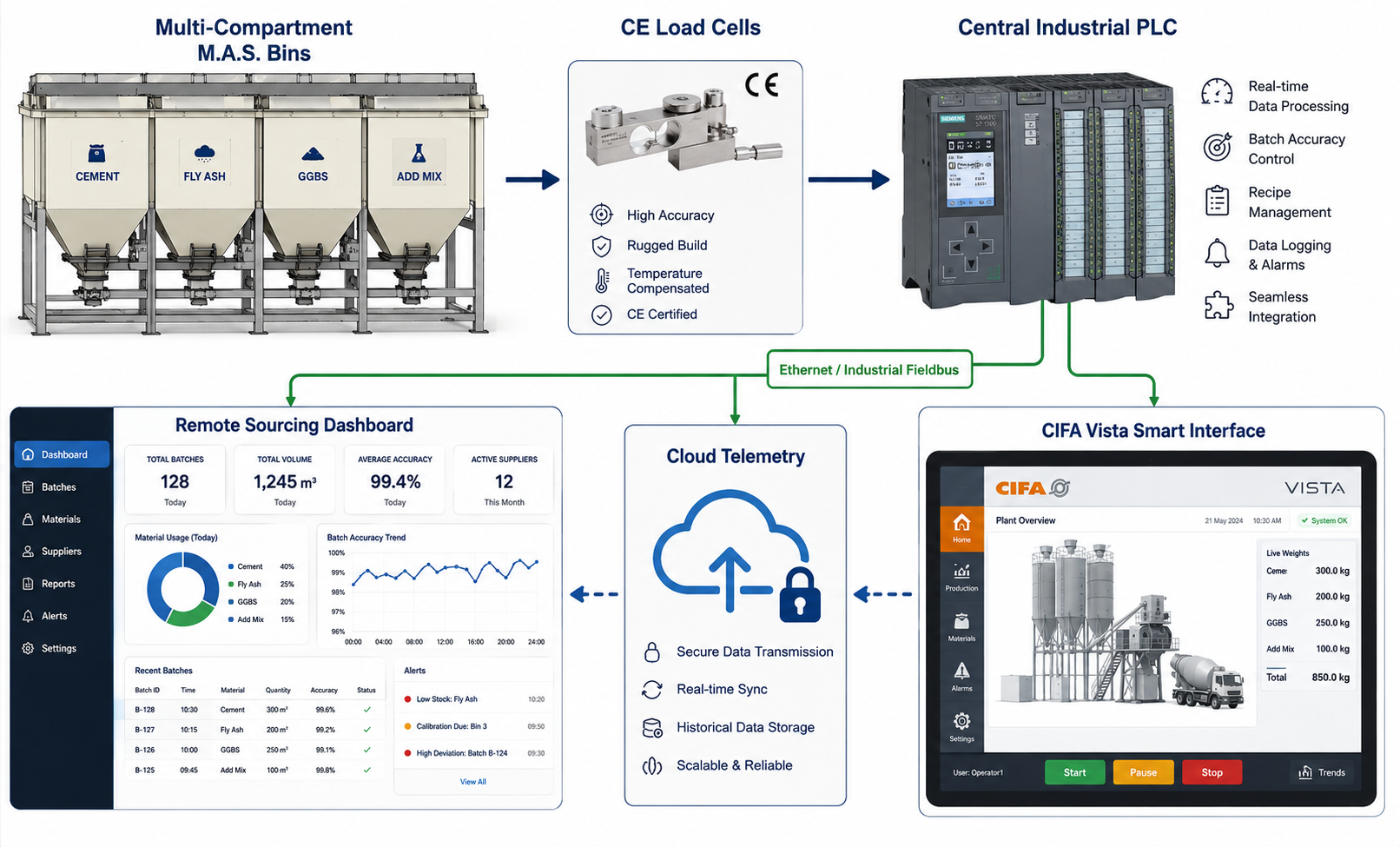

CIFA plants integrate advanced electrical safety features with their proprietary CIFA Vista Monitoring and Automation System. This platform relies on a heavy industrial PLC framework linked to localized smart transducers.
1. Precision Dosing & The M.A.S. Aggregate Unit
Material measurement relies on the modular M.A.S. aggregate dosing unit, featuring 4 to 6 independent compartments.
- Electro-Pneumatic Calibration: Bins utilize dual electro-pneumatic cylinders driving independent dosing cones. Paired with CE-certified shear-beam load cells, the system holds fluid and cement scales within a rigid ±1% variance margin and sand/gravel loops within ±2% tolerances, satisfying strict European EN 206 standards.
- Vista Cloud Diagnostics: The CIFA Vista software layer functions via an intuitive graphical SCADA control desk interface. It registers real-time batch weight metrics, monitors concrete consistency curves via mixer motor current consumption, and cloud-syncs production data logs directly to the investor's procurement tracking dashboard.
Technical Specifications & Model Portfolio Matrix
The technical data matrix below maps the explicit mechanical engineering boundaries across CIFA's primary high-export stationary and modular FiveTech ready-mix configurations.
| Technical Parameter / Metric | FiveTech 1000W (Modular Compact) | CIFAMIX 100 (Stationary Line) | CIFAMIX 120 (Heavy Industrial) |
|---|---|---|---|
| Nominal Compacted Output | 60 m³/h | 100 m³/h | 120 m³/h |
| Mixer Model Integration | DNA 1.5 Twin-Shaft | DNA 2.25 Helicoidal | DNA 3.0 Helicoidal |
| Mixer Volumetric Capacity | 1500 / 1000 Liters | 3350 / 2250 Liters | 4500 / 3000 Liters |
| Aggregate Compartments | 4 Compartments (MAS 4) | 4 to 6 Compartments | 4 to 6 Compartments |
| Max Aggregate Size Limit | ≤ 60 mm | ≤ 80 mm | ≤ 80 mm |
| Mixer Feeding Assembly | Optimized Skip Hoist | Skip Hoist / Belt System | Heavy-Duty Inclined Belt |
| Automation Software Suite | CIFA Vista Platform | as1 / CIFA Vista Sync | Centralized SCADA Vista |
Engineering Sourcing Evaluation Matrix: Pros vs. Cons
To maintain factual consulting credibility for international infrastructure buyers, CIFA plants must be analyzed via a clear balance of capital and mechanical realities.
👍 The Sourcing Advantages (Pros)
- Optimized Global Freight Logistics: The Sapphire and Diamond configurations fit completely inside standard sea containers. This design significantly cuts down ocean shipping overhead to remote markets like Southeast Asia, Africa, and Latin America.
- Elite Software Interface (E-E-A-T): The CIFA Vista telemetry suite offers superior remote diagnostics. Factory technicians can troubleshoot calibration drifts remotely from Europe or China via cloud link, decreasing site downtime.
- Strong Structural Redundancy: Benefiting from Zoomlion's massive industrial purchasing power, structural frames use heavy steel while maintaining premium European wiring, pneumatic valves, and load cell parameters.
👎 The Economic Limitations (Cons)
- **Premium CAPEX Over Basic Mills:**Sourcing a FiveTech or CIFAMIX line carries a initial capital investment premium that is 30% to 45% higher than unbranded domestic Chinese machinery clusters, lengthening the short-term capital break-even window.
- Complex Helicoidal Replacement Paths: While standard straight mixing paddles can sometimes be patch-welded on-site, CIFA’s specialized helicoidal DNA blades require precision OEM castings to maintain the proper geometric mixing path. This configuration makes the plant highly dependent on official Zoomlion/CIFA parts depots.
- Strict Aggregates Size Limits: Compact models utilizing specialized skip hoists or tight belt feeds require tightly managed aggregate screen sizes. Feeding unmanaged aggregate larger than 80mm can jam collection hoppers and accelerate wear on the helicoidal shaft seals.
Strategic Sourcing & Site Siting Guidelines
- Urban vs. Infrastructure Siting: For high-volume commercial ready-mix plants running non-stop daily fleet operations in central urban nodes, source the CIFAMIX 120 equipped with an inclined belt feed system. For remote construction project staging or short-term contract infrastructure grids, opt for the FiveTech Sapphire Series compact line to save thousands on structural concrete foundation costs.
- Silo Integration Strategy: CIFA setups hook up seamlessly with matching Zoomlion bolted cement silos. Ensure your factory purchase order mandates an integrated pneumatic silo top dust filter system to prevent localized micro-particle emission violations during high-velocity pneumatic silo fills.
- Cross-Border Logistics Management: Leverage Zoomlion’s massive localized global hubs (such as their localized manufacturing and spare parts depots in Brazil, Italy, or Hunan) to negotiate your final destination delivery. Ensure your purchase contract guarantees local currency parts support and local engineer commissioning authorization to lock in a seamless site initialization phase.
