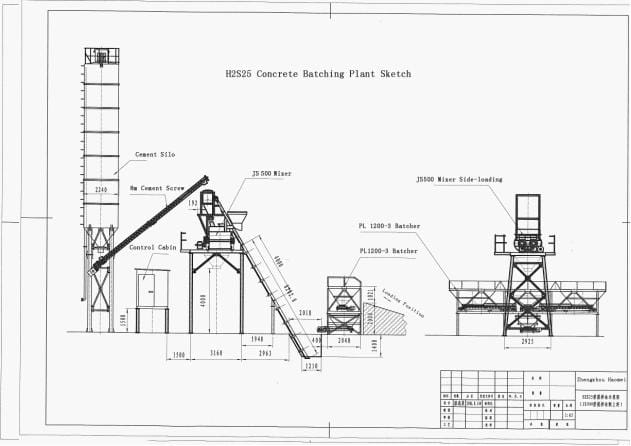

Concrete Batching Plant Foundation Engineering: Layout Layouts & Civil Work Specifications

Introduction to Civil Foundation Engineering

In industrial ready-mix concrete production, structural stability is heavily dictated by the initial quality of the civil foundation engineering [1]. A concrete batching plant is subject to severe dynamic stresses, intense cyclic vibrations, high-frequency torque vectors from twin-shaft mixers, and fluctuating vertical loads from 100-ton to 300-ton cement silos.

Implementing poor foundation layouts or failing to accurately calculate soil bearing capacities leads to localized structural subsidence, structural frame misalignments, belt conveyor tracking failures, and extreme measurement drifts in high-precision digital load-cell weighing scales.

This guide provides structural installation engineers, civil contractors, and plant procurement managers with the precise technical tolerances, sub-surface rebar specifications, and concrete curing frameworks required to execute a bulletproof foundation layout for standard commercial batching lines (e.g., HZJS60 and HZJS120 models).

Subgrade Assessment & Soil Bearing Tolerances

Before pouring a single cubic meter of structural concrete, rigorous subgrade compaction and soil mechanical assessment are mandatory.

1. Soil Bearing Capacity Thresholds (kPa Metrics)

• Stationary Mixing Tower Foundations: The minimum allowable soil bearing capacity must not fall below 180 kPa for medium-scale plants (60 m³/h) and 220 kPa for heavy-duty belt-fed configurations (120 m³/h to 180 m³/h).
• Cement Silo Footing Zones: Due to concentrated vertical dead loads and localized wind-load tipping stresses, silo footing sectors demand a minimum capacity of 250 kPa.
• Geo-Targeted Subgrade Remediation: If the target site layout falls within high-moisture tropical geographics or coastal delta regions (e.g., coastal Philippines, Iraq, or western Indonesia) where the natural soil bearing sits under 120 kPa, the site must undergo a deep pile driving deployment (minimum 250mm diameter concrete or steel piles driven to bedrock depth) before setting the primary footing pads.

2. Excavation Depth & Frost Line Adaptations

The excavation depth for structural footing pads must break past the local organic topsoil line and terminate at least 500 mm beneath the local geographic frost line. For tropical environments, a standard excavation matrix of 1.8 meters to 2.5 meters deep is baseline for major structural column pads.

Reinforcement Rebar & Concrete Grading Matrices

The structural integrity of the foundation relies entirely on the internal steel reinforcement mesh configuration and the compressive strength metrics of the cured concrete matrix.

The components and their specific structural functions are broken down below:

Top Surface Wear Layer: The topmost exposed zone subjected to daily traffic, abrasion, or environmental wear. It protects the structural steel below.

Top Rebar Grid: 16mm deformed steel spaced every 150mm. This layer resists cracking from temperature changes and handles any reverse bending or negative moments.

Vertical Stirrup Supports: 12mm tie hooks. These serve as shear reinforcement and connect the top and bottom rebar grids, keeping the steel cage rigidly spaced during the pour.

Bottom Rebar Grid: 20mm high-tensile steel spaced every 150mm. This is the primary load-bearing reinforcement handling the bending moments caused by heavy loads.

Lean Concrete Blinding Layer (C15): A thin (often 50–100mm) unreinforced concrete sub-base poured over the excavated soil. It provides a dry, level working platform to tie the heavy rebar cage and prevents moisture from the soil from draining into the main slab pour.

1. Metallurgic Steel Reinforcement Layout

Standard engineering practice demands a double-layer, high-tensile deformed steel rebar cage layout (Grade 60 / B500B or local equivalent):

• Main Tension Bars (Bottom Grid): Minimum 20 mm diameter bars configured at a strict 150 mm × 150 mm grid spacing.
• Distribution Bars (Top Grid): Minimum 16 mm diameter bars configured at a 150 mm × 150 mm grid spacing.
• Stirrups and Tie Hooks: Minimum 12 mm diameter bars deployed at 200 mm intervals to ensure complete rigidity of the cage during high-velocity concrete delivery pump flows.
• Concrete Cover Protections: Maintain a clean 75 mm concrete cover clearance between the steel rebar cage perimeter and the outer soil boundary wall to eliminate moisture ingress and subsurface rebar oxidation risks over a 15-year operational runway.

2. Concrete Mix Proportioning & Grade Selection

• Blinding Layer: A 100 mm unreinforced lean concrete blinding layer utilizing C15 Grade must be poured first to seal the raw excavated soil floor before setting steel cages.
• Primary Structural Pads: The main tower columns, aggregate storage bins, and cement silo foundations must utilize a minimum of C30 Grade (30 MPa characteristic compressive strength at 28 days). For heavy-duty 180 m³/h+ plants or cold-climate configurations subject to freeze-thaw cracking cycles, elevate the mix requirement to C35/C40 High-Strength Concrete.

Technical Specifications: Foundation & Civil Work Tolerances

The table below maps the strict physical engineering tolerances that civil work contractors must achieve prior to the arrival of the mechanical installation team at the entry port.

Embedded Anchor Bolt Installation & Alignment

The mechanical connection interface between Sany/XCMG/Sany heavy structural steel components and the cured concrete foundation relies on heavy-duty J-type or L-type embedded anchor bolts (typically M30 to M48 structural carbon steel grades).

1. Rigid Template Fixing: Anchor bolts must never be manually pushed or dropped directly into fresh concrete blindly. Civil contractors must fabricate a rigid steel or thick plywood alignment template matching the exact center-to-center mechanical bolt circle layout of the plant columns.
2. Double-Nut Locking: Secure the anchor bolts to the template using top and bottom locking double nuts to eliminate shifting during high-velocity concrete placement.
3. Grounding Coordination: Weld the lower anchor bolt J-bend framework directly onto the internal main rebar grid. This secures the geometric coordinate paths of the bolts and provides a reliable electrical ground path for the plant’s automated PLC lightning protection matrix.

Hydration Curing Framework & Quality Control Checklist

Once the C30 concrete mix is poured, the hydration phase must be strictly monitored to prevent thermal cracking and ensure maximum loading limits are reached.

• Initial Moisture Preservation: Immediately cover all exposed concrete pads with geotextile mats or plastic sheeting within 2 hours of final trowel finishing.
• Sprinkling Sequence: Maintain continuous water sprinkling hydration cycles for a minimum duration of 7 consecutive days in tropical zones and 14 days in high-temperature arid desert sites to prevent structural micro-cracking due to moisture evaporation.
• Curing Times Relative to Loading: Mechanical installation crews are strictly prohibited from crane-lifting heavy mixing towers or 100-ton cement silos onto the embedded anchor bolts before the concrete has reached 85% of its 28-day design strength (typically achievable within 14 to 21 days under standard 25°C ambient conditions).
